Fairline Surveyor is a Multi Role Support, Survey and Guard Vessel
FAIRLINE SURVEYOR SPEC SHEET
Vessel name: Fairline Surveyor
CONSTRUCTION
All steel
PRINCIPAL DIMENSIONS
LOA 23.990 M
LBM 21.000 M
B.MID 7.200 M
D.MID 3.700M
Rake of Keel 1.050 M.over LBM
Depth of Keel 0.320 M (box keel,560 M Wide)
RSS NO C16942
Tonnage 168GT&70.56 Net
Max.Service Displacement 261.835 Tonnes in condition NO2
Corresponding Draft Amidships 3.119 M To USK amidships
Corresponding Free board 0.901 M to steel deck amidships
Average speed 10.3kts
Category work boat code 0 (international)
Bollard Pull 7.9 ton
DURATION AT SEA
20 PERSONS ON BOARD 21 DAYS
WORK TYPE SUITABILITY
SURVEY
Side scan sonar
R.O.V.
Multi Beam Eco Sounder
Environmental
OTHER WORK
Crew Transfer
Rapid Oil Spill Response Vessel
CARGO
CAPABILITIES
5 Ton top deck
5 Ton Aft.deck
DECK EQUIPMENT

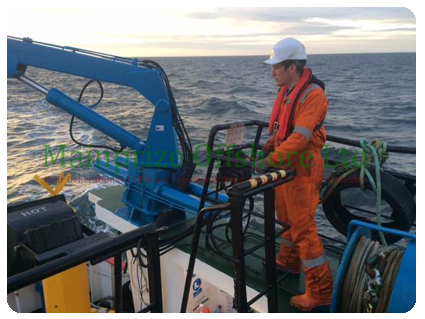

Aft Crane 1.5 Ton
Aft A Frame 4 Ton
Anchor windlass
Cable Winch (Side Scan Sonar0
Hyd.Drum Aft (For Oil Spill Boom)
BRIDGE EQUIP.
Main Radar 25k JRC
Aux. Radar 12k Arnitsu
Main Plotter
Sodna (Auto Pilot interfaced)
Aux Plotter Trax
(AIS interfaced)
Navatron Auto Pilot
3 Sailor VHF
1 Sailor RT
1 Sailor watch keeper
Talk back throughout boat
Furno AIS transmit and receiver
2 MLR G.P.S. Receivers
1 Kodan G.P.S Receiver
C.C.TV system throughout boat
Internet satellite with WI-FI available throughout boat
MAIN ENGINE
Caterpillar
3412 750 hp at 18.00 rpm
Gear Box Renties 3-1 ratio
driving fix pitch prop
Aux 1 Cummings 300 hp driving main hyd.& 60 ky Stamford Gen 415v 3 phase
Aux 2 Cummings 115 hp driving aux.hyd & 60 Ky Stamford Gen 415 v 3 Phase
All life saving fire detection and fighting and the safety equipment for 20 persons to comply with M.C.A. work-boat cat 0 is carried
