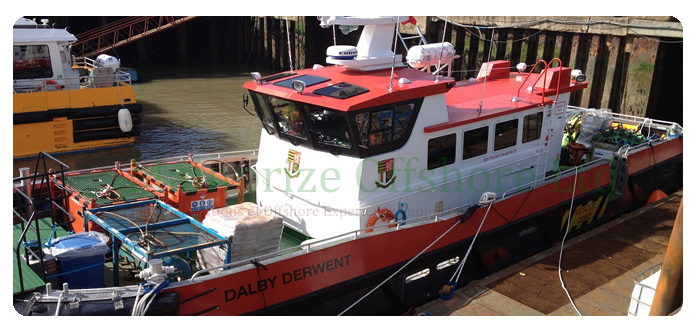

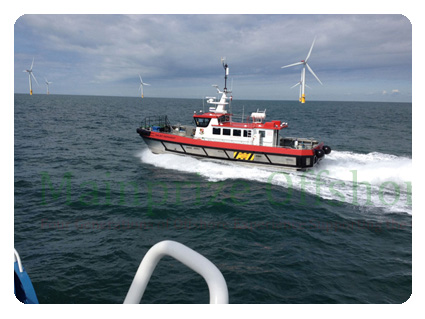

DALBY DERWENT SPEC SHEET

Download Brochure

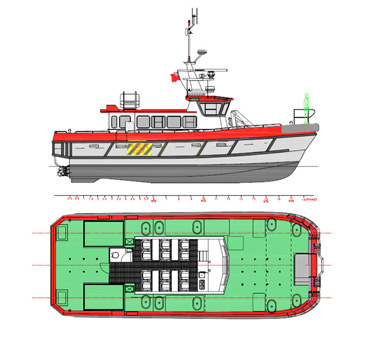

DIMENSIONS

Length Overall 17.5m
Length Hull 17.0m
Beam Overall 6.4m
Draught (Base to DWL) 1.0m
Displacement (Lightship excl. Fluids) 30,000kg
Total Fuel capacity 8,200ltr
Range 600nm
Water capacity 200ltr
Complement (total) 15POB including maximum 12Pax
Service Speed 23Kts
Sprint Speed 27Kts
Fore Deck Area 24.0m
Aft Deck Area 22.0m

CODE, CARGO AND FASTNINGS

MCA Workboat Code (60nm) for twelve passengers and up to 3 crew.
Approved for a minimum of 8,000kg’s of cargo

12 x Aluminium Cargo securing pockets and bars (as per 033) to forward deck
6 x Aluminium Cargo securing pockets and bars (as per 033) to aft deck
2 x Aluminium Liferaft Cradles
1 x Hercules 1t Hydraulic Forward Deck Capstan
2 x 40Kg Imitation Bruce Anchor (Stowed in outer bow platform)
1 x Whale Gusher Manual Fire Pump Fitted to Transom c/w Better Hose
1 x Hercules hydraulic pressure washer system fitted to bow (210 Bar and 30l/min) with 25m Hose Reel

NAVIGATIONAL EQUIPMENT

Furuno FR8062 Marine Radar c/w 4ft Open Array Scanner, ARPA Interface, AIS Interface
Furuno MFD-BB Navnet 3D Marine Chart Plotter (C-MAP) & Video Sounder
Furuno ETR Network Sounder (usual TX), Navnet GPS Antenna, 24” Radome, Stainless Steel TX
Integrated forward looking CCTV camera
Furuno MFD8 Stand Alone Chart Plotter c/w Integrated CCTV Cameras to Saloon & Aft Deck
KME 19” Deep Dim Monitor CMAP Charts for UK
Furuno FCV-585 Video Sounder c/w Stainless Steel TX
Furuno GP37 Marine GPS System
Furuno FA150 Class A AIS Transceiver
Furuno SC50 Satellite Compass System
Furuno RD30 Wind Speed & Direction Indicator
Furuno NX300 Navtex Reciever
Simrad AP35 Auto Pilot System
2 x Sailor RT5022 VHF Class A DSC
Furuno LH3000 Loadhail System
2 x Jotron Tron GMDSS Compliant Hand Held VHF Radios
Jotron Tron SART
Jotron Tron 40S FB5 Satellite EPIRB
Sea Marshall Crew Finder System
Globesurfer 3G Wireless Internet System (requires Iceni supplied data sim card)
Narqus TV Antenna c/w Wiring to TV Aerial Socket in Saloon
1 x LG 22” LCD TV c/w Integral DVD player (interfaced to NN3D BB)
1 x LG 22” LCD TV (interfaced to MFD8)
DVD Player Mounted in the Galley Unit c/w 4 x Saloon Speakers

SAFETY EQUIPMENT

14 x Thermal Protective Aids
2 x Hammar Hydrostatic Release
2 x Spencer Rigging Liferaft Lashing Straps
2 x Orange Ring Type c/w Reflective Badging and Vessel Name
1 x KIM Lifebuoy Drouge & Pocket
18 x Metres Orange Floating Line 8mm
1 x Throwing Line (Sock Type)
1 x Throwing line Holder
17 x Com Red Man Gas c/w AQ98 & Re Arm pack
2 x KIM Cruising Adult Harness c/w Attached Line
4 x Ikaros Red Parachute Rocket
6 x Ikaros Red Hand Held Flare
2 x Ikaros Buoyant Smoke
1 x OS Yellow Poly Bottle 2 Ltr
1 x VHF GMDSS Safety Message Card
2 x SOLAS No. 2 Card
1 x Code of Practice Training Manual
1 x SOLAS Training Manual
1 x 4kg Powder Extinguisher (21A 113B) – Inshore
2 x Gloria 1kg Powder Extinguisher
2 x 3 Gallon Bucket
1 x Fire Blanket Slim Pack MSA
2 x Anchor Ball
1 x Waterproof Torch c/w Bulb MCA
1 x Echomax EM230 Radar Reflector White
1 x KIM Galley strop
1 x Code of Practice F/A Kit (Boxed) 1998
1 x Water Container
1 x Jason’s Cradle Scamble Net c/w Stowage Bag Secured to Rescue Zone
1 x Block & Tackle System for Jason’s Cradle

OTHER EQUIPMENT

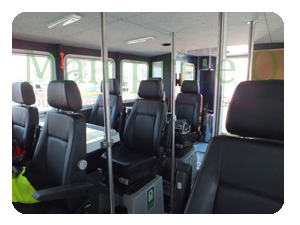

Saloon with Whispaire Teamate hot water boiler, stainless steel sink with pressurised hot and cold water supplies, 240V microwave, 240v 2 burner hob and combination fridge complete with freezer section and lockers for stowage of provisions
2 x 22” LG TV’s (centre TV to have integral DVD player) with inputs from the Narqus TV antenna and DVD player for passenger entertainment.
3 x Double UK socket outlets to port of saloon
3 x Double EURO socket outlets to port of saloon
3 x Double UK socket outlets to stbd of saloon
3 x Double EURO socket outlets to stbd of saloon
1 x IP rated socket to be fitted to each engine room.
1 x IP rated socket to be fitted beneath the capstan in the locker behind the black hatch

DATA SHEET B: AC GENERATOR SET

Supplier ONAN e-QD (Berthon Boat Company)
Model MDKBL
Speed 1500 RPM
Power 9 kW
Output 9 KvA
